Upgrade Series
Upgrade Deluxe Attic Ladder
Looking for a quality attic ladder for regular use? The Upgrade Deluxe timber ladder is for you. Designed for floor to ceiling heights up to 3.66 metres, the Upgrade has a gentle 60 degree incline for easy climbing looks great and is Australian made. The Upgrade series is available in a 650 opening width for conventional roofs and a 550 width for trussed roofs (UGT Truss range).
Customer Benefits:
- Wide, deep treads and 60º ladder angle mean safe, easy climbing
Choice of opening widths with the same deep treads - UGT Truss with 550 opening for hassle free truss roof installation
- Hand crafted in Australia from premium Australian hoop pine providing great looks and reliability
- Heavy duty double spring hinges and spring assisted ladder sections give easy operation
- Strong, stable 220kg spead load capacity for long life with regular use
- Handrail is standard for great climbing ability
- Lacquered ladder sections for long lasting good looks
- Rubber feet to protect floor from scratches and scuffs
Features
- Constructed from superior fine-grained plantation grown Australian Hoop Pine timbers
- Side rails tensioned, step treads grooved, glued and screwed. All ladder sections lacquer coated.
- MDF ceiling panel
- Heavy duty, plated glove-hinges link step sections
- Plated adjustable balance springs
- Side assist springs on ladder sections
- Generous sized ceiling openings
- Safety handrail
- Completely pre-assembled and suitable for DIY installation by general handy person or one of our professional installers.

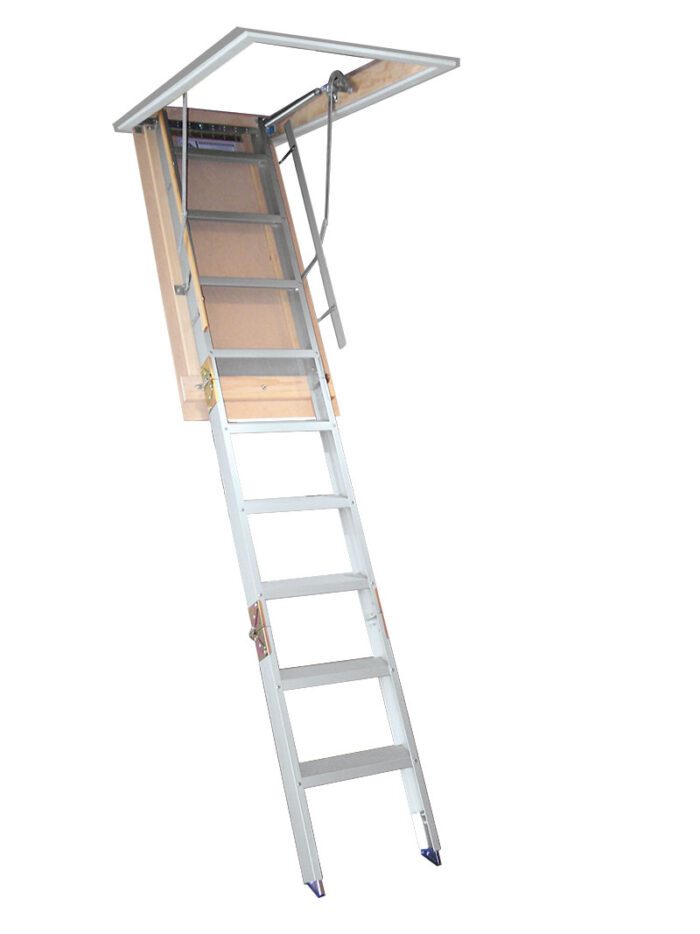

Attic Upgrade Ladder Aluminum 220
This Australian made quality ladder, manufactured by the Attic Group, is perfect for regular use in standard or truss roofs. It’s best designed for floor to ceiling heights up to 3.66m.
This ladder provides a strong, stable 220kg spread load capacity and can also be custom-made in reduced sizes (width) to suit, in particular, narrow truss roofs.
Features
- Wide, deep treads and 60° ladder angle mean safe,
easy climbing - Choice of opening widths with the same deep treads:
- – A generous 650mm opening for easy access for broad shouldered people.
- – A range of openings for hassle free fitting in houses with a truss roof.
- Heavy duty double spring hinges and spring assisted ladder sections for easy operation.
- Strong, stable 220kg spread load capacity for long life
with regular use. - Handrail is standard for great climbing stability.
- Lacquered ladder sections for long lasting good looks
- Rubber feet to protect floor
- Made in Australia

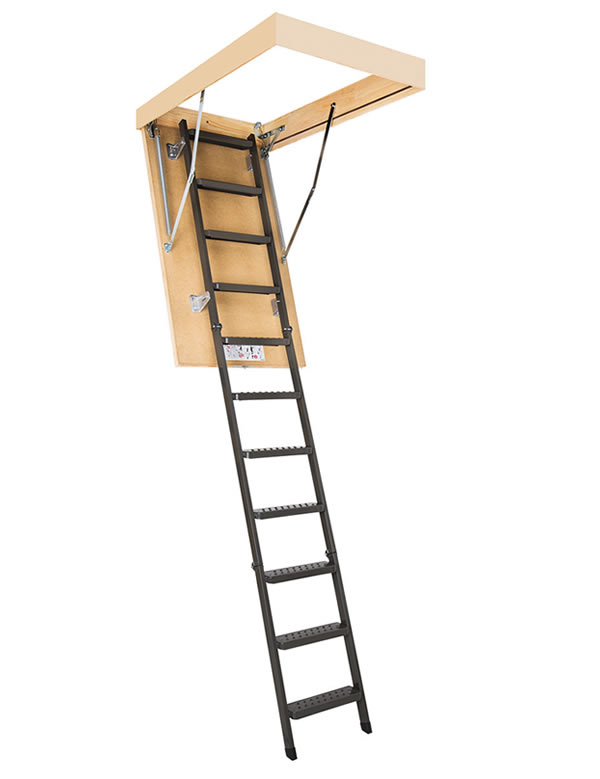

Attic Ladder Performance Metal
This European-made ladder suits customers who will use the ladder occasionally – in standard or truss roofs.
The ladder is available for ceiling heights up to 3.05m. Apart from the robust construction with a maximum load capacity of 180kg, the insulated, pre-finished white trapdoor reduces heat loss and prevent dust from entering the home.
Features
- 565mm opening for truss roofs and 700mm for standard roofs allows easy access.
- Made from powder-coated steel for strength and durability.
- Stable 200kg rated load capacity with welded treads for added strength.
- Durable hinges have a high load resistance due to the use of double joints.
- Red safety handrail.
- Pre-finished white trapdoor spring-hinged andbalanced for effortless opening.
- Plastic feet reduce scratching on floors.
- Special seal around the perimeter of the trapdoor to prevent dust from entering the home.
- Insulated trapdoor reduces heat loss.
- Comes assembled, ready to install and with full
instructions making home installation trouble-free.
Wooden – Technical Specifications
| Model - Timber | Opening | Floor Ceiling | Standout | Foldout |
|---|---|---|---|---|
| Upgrade UGT 86 | 650x1370mm | 2600mm | 1600mm | 1700mm |
| Upgrade UGT 96 | 650x1370mm | 2900mm | 1800mm | 1950mm |
| Upgrade UGT 106 | 650x1540mm | 3300mm | 1950mm | 2100mm |
| Upgrade UGT 120 | 650x1690mm | 3660mm | 2200mm | 2280mm |
| Upgrade Truss UGT86T550 | 560x1370mm | 2600mm | 1600mm | 1700mm |
| Upgrade Truss UGT96T550 | 560x1370mm | 2900mm | 1800mm | 1950mm |
| Upgrade Truss UGT106T550 | 560x1540mm | 3200mm | 1950mm | 2100mm |
| Upgrade Truss UGT120T550 | 560x1690mm | 3660mm | 2200mm | 2280mm |
Metal – Technical Specifications
| Model - Metal | Opening | Floor Ceiling | Standout | Foldout |
|---|---|---|---|---|
| Upgrade UGA 86 | 650x1370mm | 2600mm | 1600mm | 1700mm |
| Upgrade UGA 96 | 650x1370mm | 2900mm | 1800mm | 1950mm |
| Upgrade UGA 106 | 650x1540mm | 3300mm | 1950mm | 2100mm |
| Upgrade UGA 120 | 650x1690mm | 3660mm | 2200mm | 2280mm |
| Upgrade Truss UGA86T550 | 560x1370mm | 2600mm | 1600mm | 1700mm |
| Upgrade Truss UGA96T550 | 560x1370mm | 2900mm | 1800mm | 1950mm |
| Upgrade Truss UGA106T550 | 560x1540mm | 3200mm | 1950mm | 2100mm |
| Upgrade Truss UGA120T550 | 560x1690mm | 3660mm | 2200mm | 2280mm |
Dimensions
| Tread | Stile | Packed | Casing | |
|---|---|---|---|---|
| Depth | 107mm | 94mm | 1380 - 1700mm | 1360 - 1680mm |
| Thickness | 19mm | 19mm | 360mm | 116x19mm |
| Width | 410mm | - | 650mm | 635mm |
| Weight | 31 - 39 kg | |||
| Load Capacity | 220kg spread load | |||
